High Performacne PET Water Bottle Filling Capping Machine

Brand Name : Aquatrin

Model Number : CGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD10000-30000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Suitable for : Water Filling Line

Filling material : Drinking water, mineral water, pure water

Voltage : 380V or customized

Automatic Grade : Automatic

Core Components : Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine

Processing Types : Automatic Filling Sealing Production Line

Contact Now

High Performacne PET Water Bottle Filling Capping Machine

Product Application
3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

This CGF washing-filling-capping 3-in-1 unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF washing-filling-capping 3-in-1 unit: Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

High Performacne PET Water Bottle Filling Capping Machine

02 - Washing Parts.

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
High Performacne PET Water Bottle Filling Capping Machine

04 - Capping Parts.

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
High Performacne PET Water Bottle Filling Capping Machine

Technical parameter:

Model

XGF

18-18-6

XGF

24-24-8

XGF

32-32-8

XGF

40-40-12

XGF

50-50-12

XGF

60-60-15

XGF

72-72-18

XGF

80-80-18

Capacity(500ml/BPH) 6000 8000 12000 16000 20000 25000 30000 38000
Suitable bottle shape and size Both round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mm
Compressed air pressure 0.3-0.7MPa
Bottle washing medium Sterile water
Washing pressure 0.25MPa
Main motor 2.2 3 5.5 7.5 7.5 9.5 10.5 12.5
Dimension(mm)

2500*2000

*2300

2700*2100

*2300

2970*2260

*2700

3780*2800

*2700

4850*3300

*3200

5050*3500

*3200

*3200 5250*3600

*3200

Weight(KG) 3500 4500 6500 8500 7500 8500 9500 11500

High Performacne PET Water Bottle Filling Capping Machine

High Performacne PET Water Bottle Filling Capping Machine

High Performacne PET Water Bottle Filling Capping Machine

Final Product
High Performacne PET Water Bottle Filling Capping Machine
Suitable bottle :
Bottle material:PET
Bottle volume(ml):200ml--2500ml
Bottle type: Round , Square or coustomized
Bottle height(mm): 160-340
Bottle diameter(mm):50-100
Related Product
High Performacne PET Water Bottle Filling Capping Machine

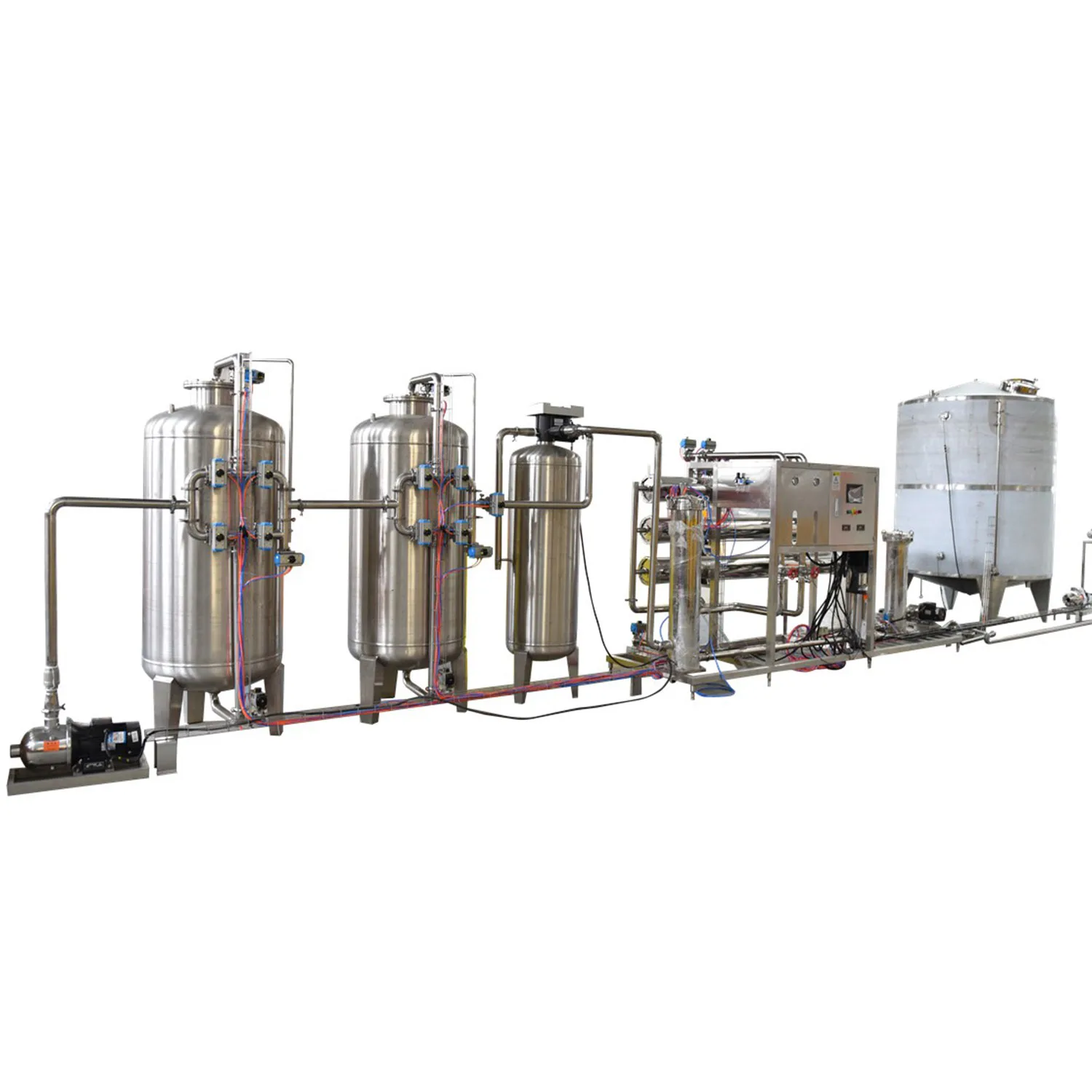

Water treatment machine

1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
High Performacne PET Water Bottle Filling Capping Machine

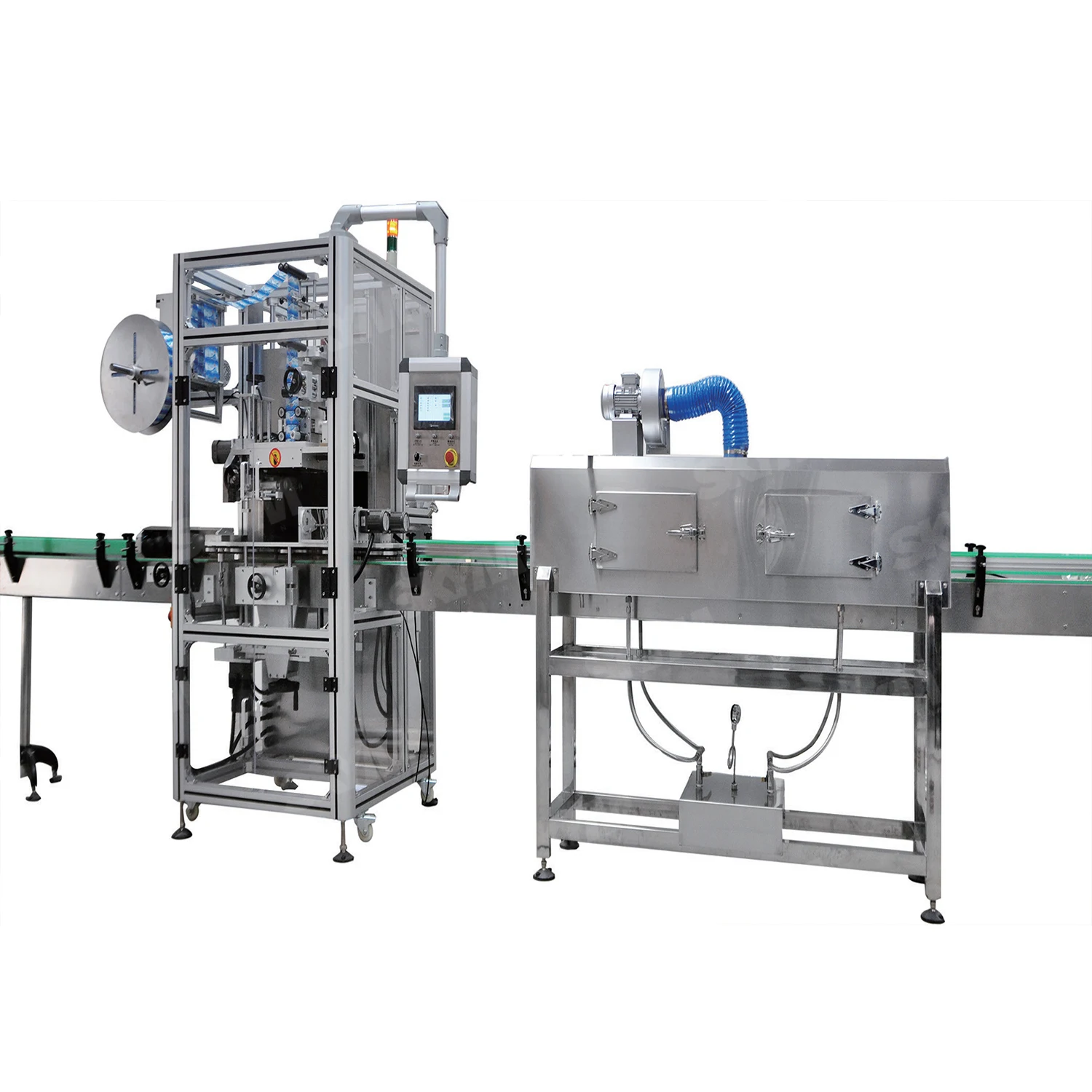

PVC sleeve shrink labeling machine

This machine adopts international advanced technology; cover the circle label on the pet bottle.
High Performacne PET Water Bottle Filling Capping Machine

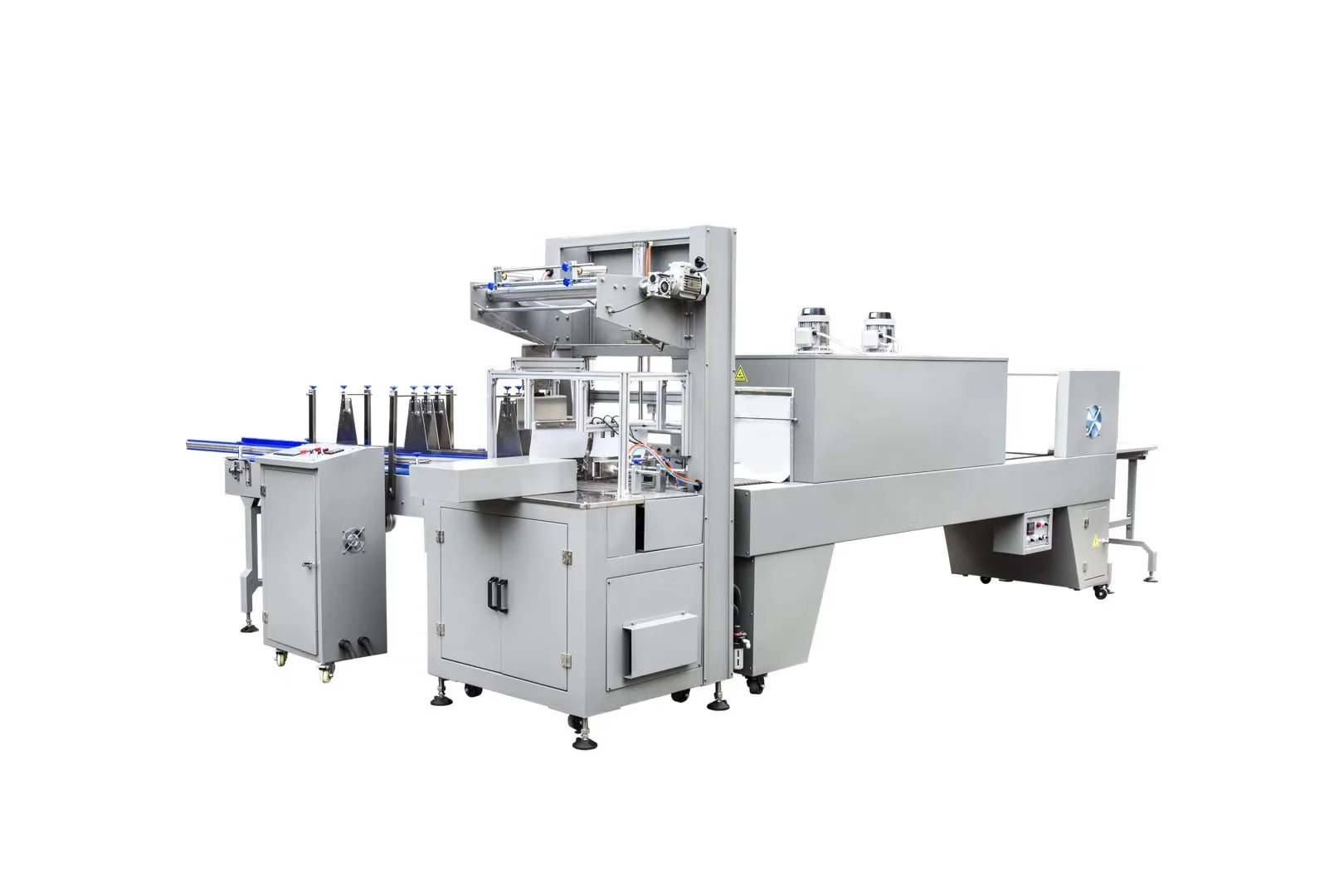

PE film shrink wrapping machine

(1)350/500/550/600ML
large package: 4*6, 4*5
Small package: 3*4, 3*5 (2)1L/1.5L/2L/2.5L
large package:3*3,3*4
Small Package:2*2,2*3
